Interface converters

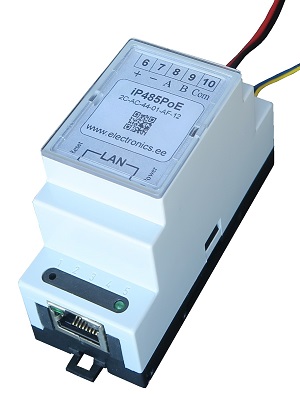

IP485PoE

Ethernet to RS485 Converter powered by PoE plus 12 VDC output
Baudrate - up to 921600 bps.
12 VDC output current - 0 ... 1 A.
Ripple - less 100 mV peak-to-peak.

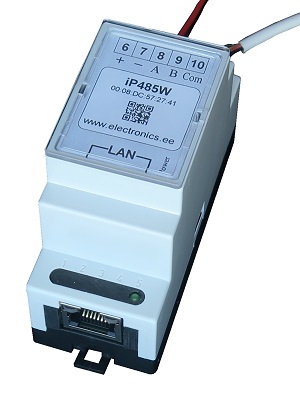

IP485W

Ethernet to RS485 Converter

Baudrate - up to 460800 bps.
Power supply 5 ... 30 VDC.

Configuration utility.

Latest firmware.


12-port RS485 Concentrator

12-port RS485 Concentrator

Ports options: RS485, RS232 or Current loop. Almost any combinations.

Power supply voltage 4,5 ... 28 V (< 1 W).

Custom firmware, e.g. extender for access control system.



USB422ISO

USB to RS422/RS485 converter plus 12 VDC output.

Baudrate - up to 500 kbps
12 VDC output current - 0 ... 110 mA
Ripple - less 100 mV peak-to-peak
Galvanic isolation - 560 VDC, 420 VAC

Latest drivers and hardware description at our support page



USBR2

USB to 2 x RS485 conveter plus 12 VDC output

Baudrate - up to 230 kbps;
Total Throughput - up to 40 kbytes per second;
12 VDC output current - 0 ... 110 mA;
Ripple - less 50 mV peak-to-peak;
Galvanic isolation - No.

Option 1. USB - 2 x RS485 Converter plus 12 VDC 110 mA output

Option 2. Data acquisition and control unit for 62 modules controlled by USB

Option 3. RS485 to RS485 protocol converter (no USB). External power supply 4,5 ... 28 V



USB-RS422/RS485 USB-RS232

USB-RS422/RS485

Baud rate: up to 3Mbs
RS422/RS485 mode (jumper selection)
Termination resistor (jumper selection)

USB-RS232

Baud rate: up to 115 kbs
RS232 connector: DB9-M

Latest drivers and hardware description at our support page
